Re: [linux-minidisc] Problem with converting file

[Roberto Lionello <roberto.lionello@gmail.com>]

Thank you, Michael!

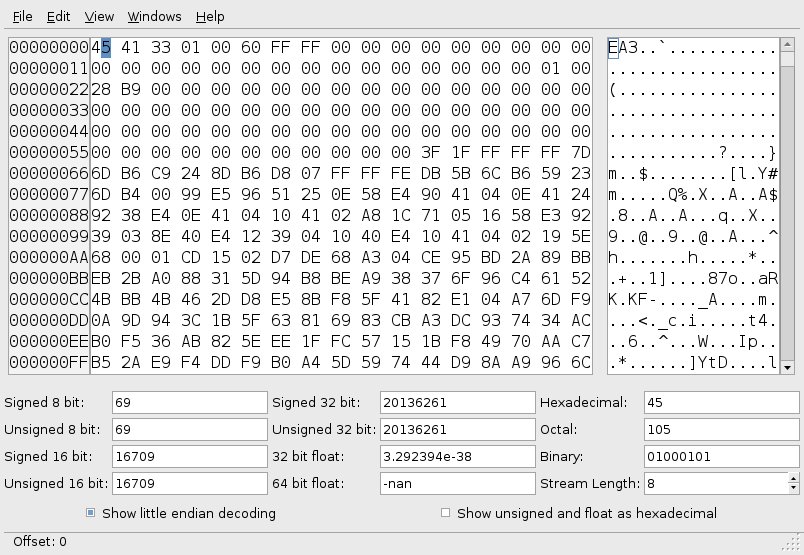

Please find in attachment what the hex editor shows. I'm not an expert, but, If I counted right,

the 20 bytes after FF are all 00. It also cover more than 100 bytes after the beginning.

However, if you or some other guru wish to give it a try, the track can be found here (I recorded it myself and declare it to be Creative Commons).

http://www.predsci.com/~lionel/track.oma

By the way, I'm running Debian Squeeze AMD64 and the version of QHiMDtransfer I used is the following:

http://deb-multimedia.org/dists/stable/main/binary-amd64/package/qhimdtransfer

Many thanks!

RL

On Sat, Jul 14, 2012 at 2:48 AM, Michael Karcher <Michael.Karcher@fu-berlin.de> wrote:

Am Mittwoch, den 11.07.2012, 19:12 -0700 schrieb Roberto Lionello:

> I recorded a track on my MZ-RH910 in atrac3plus. I then uploaded it on
> my machine with QHIMD. Since I know there isn't a codec for that
> format yet, I went to a Windows machine with Sonicstage 4.3 and tried
> to upload the file and convert it to wav format. It gives me an error
> that it cannot save the file in  wav format.

This sounds like you used a really old version of QHiMDTransfer that did
not clear the DRM tracking ID (called "Content ID") while uploading the
file from HiMD to you hard disk. The .oma files created by QHiMDTransfer
have always been completely unencrypted, but the Sony DRM system refuses
some actions even on unencrypted files, if they contain a DRM tracking
ID, but the DRM database does not contain any record for that ID.

For the upload of a track recorded with the MZ-RH910, it sounds like you
needed to use the unofficial "intoxicated" version of QHiMDTransfer
floating around in the internet. I am surprised to hear that there is an
intoxicated version based on a version that does not clear the DRM
tracking ID. So maybe there is another problem.

If you have a hex editor, search in the .oma file for "EA3" (with
capital EA!), which should be followed by "01 00 60 FF FF". The 20
(0x14) bytes starting 12 (0x0C) bytes after the beginning of the "EA3"
mark are the DRM tracking ID. Patch them to be all zero if they are not.

> I tried also with HiMD Renderer and still can't do it. I put the file
> uploaded with QHIMD and it cannot be converted.

As far as I know, HiMD Renederer uses the Sony .ocx components to play
back or convert files, so if the Sony DRM modules denies some
operations, HiMD Renderer can't do that, too.

> Does QHIMD taint the file and make the conversion impossible or is
> there some other problem?

Apart from the problem with old versions that didn't clear the DRM
tracking ID, I don't know of any problems. If the ID already is zero,
please send the headers of the offending .oma files to the list. The
headers end 96 (0x60) bytes after the start of the "EA3" magic.

Regards,
  Michael Karcher

--
+ Non nobis, Domine, non nobis, sed nomini tuo da gloriam

Attachment: hex.jpg
Description: JPEG image
